Dynamic
Instrumentation System Vishay

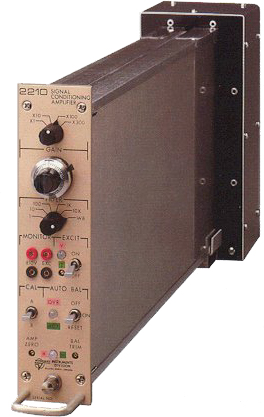

Model 2200 Signal Conditioning Amplifier
A
high-performance Dynamic Instrumentation System
for conditioning and amplification of strain gauge
and transducer inputs.
Operating controls of the Dynamic Instrumentation
System Vishay Model 2200 Signal Conditioning Amplifier
are conveniently arranged and clearly marked to
minimize the possibility of operator error. Constant-voltage
or constant-current excitation, calibration configuration,
and other optional operating modes are selected
by easily accessible internal switches or jumpers.
Dynamic Instrumentation System Features:
• Calibrated gain from 1 to 3300; adjustable front-panel
gain switch and calibrated front-panel ten-turn
potentiometer.
• Automatic wide-range bridge balance with battery
backup to retain balance in power-off condition.
• Full-power bandwidth of 100 kHz at all gain
settings; slew rate of 6.3 V/micro sec.
• Built-in four-pole Bessel low-pass filter with
cutoff frequencies of 1 Hz, 10 Hz, 100 Hz, 1 kHz
and 10 kHz; front-panel frequency selection switch.
• Built-in shunt calibration circuits; internal
user-selectable configurations to provide two-point
shunting of any bridge component or two-point
double shunt calibration of transducers.
A
high-performance Dynamic Instrumentation System
for conditioning and amplification of strain gauge
and transducer inputs.
