Signal
Conditioning Amplifier Vishay 2300 System
|
 Signal
Conditioning Amplifier Vishay 2300 System conditions
and amplifies low-level signals to high-level
outputs for multiple-channel, simultaneous dynamic
recording and display on external devices.

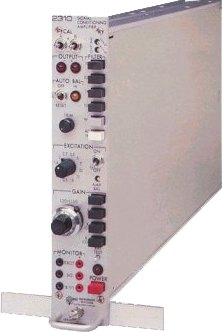

Signal Conditioning Amplifier Vishay 2300 System
features, each 2310/2311 Module includes a built-in
power supply, active filtering, three simultaneous
outputs, playback mode, wide frequency response
and electronic bridge balance. Socket-mounted
integrated circuits and discrete components achieve
the demanding specifications listed while providing
ease of serviceability.
Signal Conditioning Amplifier Features:
• Selectable bridge excitation, 0.5 to 15 Vdc
(0.3 to 15 Vdc for Model 2311).
• Fully adjustable calibrated gain from 1 to 11,000.
• Dual-range (+/-5,000 and +/-25,000 microstrain)
automatic bridge balance with "keep-alive" power
to preserve balance for months without external
power.
• All bridge completion built in, including 120-
or 1,000- and 350-ohm dummies.
• Dual polarity two-step double-shunt calibration.
• Switchable active filter - up to six poles.
• Three simultaneous buffered outputs.
• Playback mode to filter and observe or re-record
previously recorded magnetic tape data.
• Input impedance above 10 megohms at all times.
Signal
Conditioning Amplifier Vishay 2300 System
|
|
