Micro-Measurements

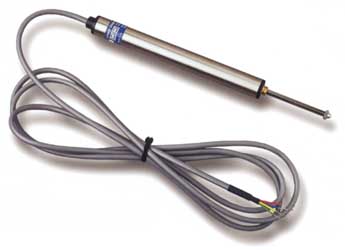

Linear Displacement Sensor uses a fully active
350 Ohm strain-gauge bridge to sense spindle displacement,
giving infinite resolution and excellent linearity.
Linear Displacement Sensor is compatible with
all standard strain-gauge instrumentation with
bridge excitation from 2 to 10 volts. With a selection
of Linear Displacement Sensor models having full-scale
ranges from 1/4 in (5 mm) to 4 in (500 mm), Micro-Measurements
Linear Displacement Sensor features a unique design
that produces maximum operating forces of less
than 1 lb. (4.4 N). Available with specially designed
mounting fixtures, these versatile Linear Displacement
Sensor are ideally suited for use in research,
manufacturing and process control applications.
Linear Displacement Sensor Features:
• Infinite resolution
• True output linearity over the entire measurement
range
• Low operating forces
• Excellent stability and temperature compensation
