SPECIAL
OFFER
FOR A LIMITED TIME INTERTECHNOLOGY
INC. WILL BE OFFERING OUR STRAIN GAUGING CUSTOMERS A CHANCE
TO TRADE IN THEIR OLD STRAIN INDICATORS FOR A $300 CREDIT TOWARDS
THE PURCHASE OF A NEW VISHAY MEASUREMENTS GROUP P3 PORTABLE 4
CHANNEL STRAIN INDICATOR & RECORDER
 VISHAY
MODEL P3 Strain Indicator and Recorder
Please
call or Email our sales department to get all the details
TORONTO
AREA (416) 445-5500, TOLL FREE 1-800-465-1600
E-Mail: sales@intertechnology.com
|
|
Intertechnology>>>>>
Proudly representing Shore Western
Manufacturing in Canada. |
Intertechnology
is pleased to announce that we are now representing
 Shore
Western Manufacturing in Canada.
Introducing
Shore Western Manufacturing
|
|
Celesco Extension Position Transducer Model M150 |
 The
Celesco Extension Position Transducer Model M150 is the Worlds Smallest
Stringpot
Introducing the worlds smallest stringpot. The
M150 is smaller than a thumbprint and occupies a
tiny space of only .74 x .74 x .38 inches. With a full
stroke measurement range of 1.5 inches, the M150
has been designed for space-critical applications
ranging from robotics and crash-test dummies to
automotive and biomedical.
The heart of the M150 is a precision high-cycle conductive
plastic potentiometer that delivers a highlinearity
voltage position feedback signal. With its
rugged all aluminum construction, the M150 has
been engineered for reliability to provide quick, easy
and hassle-free installation.
M150 Specification Summary
potentiometric/voltage divider output signal
General
.Full Stroke Range: 0-1.5 inches
.Accuracy: ±1%
.Resolution: essentially infinite
.Measuring Cable: Ψ.014-in. nylon-coated stainless
.Cable Tension: 4 oz.
.Enclosure: anodized aluminum
.Sensor: conductive plastic precision potentiometer
.Potentiometer Cycle Life: 5 million cycles
.Weight: .5 oz.
Electrical
.Input Resistance: 5000 ±10% ohms
.Recommended Max. Input Voltage: 20 VDC
Celesco Model M150
|
|
|
Kistler
4260/4262 Series General Piezoresistive Static Pressure Sensors |
Kistlers new 4260/4262 series General Piezoresistive Static Pressure
Sensors is a versatile high performance pressure sensor that will
operate in harsh test environments where temperature extremes, high
vibration and shock levels are present.
Features:
-Pressure ranges from -14.7 to 5,000 psi
- 0.05% FS accuracy
- 0.1% FS stability per year
- Temperature compensated -40 to 250 degF
- 300% proof pressure
- Fast response time
- mV, V and mA electrical output options
Kistlers new
4260/4262 series General Piezoresistive Static Pressure Sensors
|
Celesco
Linear Potentiometer Model MLP |
Celesco's miniature MLP series linear potentiometers offer unrivaled
performance in an amazingly small size. Though small, the MLP is
environmentally robust, operates over a broad temperature range
and has a cycle life greater than 25 million cycles.
These features make Celesco's miniature MLP linear potentiometer
the perfect solution for many applications including industrial,
medical, aerospace, automotive and motion control.
Features:
0-.5 to 0-6 in. ranges
.5% linearity
Broad temperature range
Miniature series
Celesco Linear Potentiometer Model
MLP
|
|
Data
Track Tracker 212 Universal 5-Digit, Low Cost, Tank Contents, Process
& Temperature Indicator |
Acquisition • Measurement • Control
The new Tracker 212 is an all-in-one, attractively designed and
priced unit. It has been engineered as a universal process and temperature
indicator with user linearization features for 4-20 mA signals.
• Low Cost with a 5 Year Warranty
• Quick and Easy to Configure
• 24-Point User Linearization for 4-20 ma Signals
• Universal Process or Temperature Measurement
• Sensor Excitation for Transducers (10V) or Two Wire Transmitters
(24V)
• Selectable Degrees F or C
• Display Scaling To Any Engineering Units
• 12-32 VDC/VAC Powered Version Option
• Universal Mains Power Input (110-250 VAC)
• Scalable Isolated Analog Output Option
• PC Programming Option
• Alarm Relay Fitted As Standard
• 2nd & 3rd Alarm Outputs Option
• No Internet Pots, Links or Plug In Cards
• Accepts mV, ma, V Ohm Signals Plus Type J,K,N,T,R,S Thermocouple
and PT100
Outputs
The T212 is fitted with a relay output with volt free C/O contacts,
as standard. The alarm can be high or low acting with user selectable
hysteresis and with the relay configurable to be energized or de-energized
(fail safe) when in the alarm condition. Two further alarm relays
can be fitted as an option.
The analog output option gives an isolated 4-20 ma signal, which
is scalable to any portion of the display range. The output is linear
to the displayed value, not the input. This makes the Tracker 212
an ideal tank contents transmitter.
Data Track Tracker 212
|
System
7000 StrainSmart Data System |
 System
7000 StrainSmart Data System
Digital Data Acquisition System:
• Acquires data from measurements
• Stores acquired data
• Reduces data to meaningful units
• Presents reduced data for viewing
Design Concepts:
• Versatile Performance - Multiple sensors (strain gauges,
strain-gauge-based transducers, high-level voltage signals and thermocouples),
digital I/O and analog outputs
• Self Calibrating - Removable NIST-traceable calibration
standard in each unit
• Distributed System - Multiple data acquisition units
can be located near sensors to reduce cable costs
• StrainSmart Based - Next generation hardware for StrainSmart
software
• Ethernet Network Architecture - Low latency inter-channel
communications for input response and near real-time data viewing
• High Channel Density - 128 channels in a 19-in x 4U
box
• Latest Technology Hardware - 24-bit Delta-Sigma ADC,
on-board DSP's and Compact Flash data storage
• DC Operation - 12 to 15 Vdc, AC adapter
Performance Features:
• Circular buffer of up to 800,000 samples per channel
• Simultaneous sampling
• Scanning rates up to 4096 samples/second/channel for all
channels
- Radix 10 sampling rates
- Radix 2 sampling rates
• Dedicated Compact Flash non-volatile memory for each input
and output card
- Maximum of 2GB storage (256MB standard)
• Separate high speed communications busses
- Synchronous data bus
- Asynchronous command bus
• Distributed System
- Scalable from 8 to thousands of channels
- Multiple 128- and 32-channel scanners per system
- Up to 200 meters between scanners (when synchronized)
• 1000 samples/second/channel data transfer rate from scanners
to PC clients
• High Channel Density
- 8 channels per input/output card
- 16 or 4 input/output cards per scanner
- 128 or 32 channels per scanner
- Height: 4U, Width: Rack mountable in 19 inch cabinets
(128-channel box)
Network Architecture:
• Ethernet based - 100 Base-T Topology
- TCP command protocol
- UDP online data stream
- FTP offline data transfer (TBD)
StrainSmart Data System Vishay
System 7000
|
|
Celesco
Mini-Series Cable-Extension Position Transducer Model MT3A |
 Celesco
Cable-Extension Position Transducer Model MT3A
The MT3A is the solution for high-acceleration test applications
in potentially wet environments. Just like the MT2A, the MT3A comes
in 4 different full-stroke ranges with a high-tension heavy-duty
measuring cable designed for the demands encountered in flight testing
and automotive crash tests. The MT3A also has the same 2-axis 360
Deg. rotation mounting bracket and is available with either a 15-ft.
eletrical cable or a blank cover that the customer can drill for
their own specific connector or strain relief.
Range: 0-3, 0-9, 0-15, 0-30 inches min.
Test Applications
Wet Environments
360° 2-axis Mounting
Celesco Model MT3A
|
|
Measurements
Group Instruction Bulletins, TechNotes, TechTips & Material Safety
Data Sheets |
|
|
Portable
Strain Display Load Cell/Force Indicator |
 Model
7561-PSD Portable Strain Display Load Cell/Force Indicator
The 7561-PSD is a completely portable strain gauge battery powered
indicator, packaged in a small, robust IP65/NEMA 4 enclosure. For
simplified use, the operator only has access to six keys. Two separate
ranges are available, which enable the instrument to read and display
two units of measure.
The menu options offer the ability to tailor the instruments response
to the application. Gross, Net, Peak and Valley measurements are
easily selected. An annunciator indicates which range has been selected.
There is also a window, to insert a legend, describing each range.
Once these parameters are set, it provides the user with the simplest
of indicators.
Features:
Powered by 2 x AA internal batteries
Portable handheld precision instrument weighing only 250g
Tactile keyboard, with dual range selection, peak/valley hold,
gross/net and on/off controls
Microprocessor based, allowing single pass calibration facility
Dual range facility
Accepts an input range of up to 50 mV/V
Environmentally sealed to IP65/NEMA 4
7 1/2 digit LCD display, with battery, peak, valley, net, error
and shunt cal indication
1 year warranty
Auto sleep
Model 7561-PSD Portable Strain
Display Load Cell/Force Indicator
|
|
Linear
Conductive-Plastic Potentiometer, Model CLWG |
 Linear
Conductive-Plastic Potentiometer, Model CLWG
Developed specifically for a wide range of demanding applications,
Celesco's CLWG series position transducers offer unrivaled performance
in terms of accuracy, repeatability, life expectancy and ease of
mounting. Such applications include industrial automation, automotive
and robotics.
The CLWG uses a twin-bearing actuating rod, backlash-free pivot
heads and a superior wiper system to provide outstanding linearity
and performance.
Full stroke ranges: 0.3 to 0.30 in. (0-75 to 0-750 mm)
Output signal: voltage divider (potentiometer)
Linearity: +/-0.04 to 0.1% full stroke
Repeatability: <0.01 mm
Resolution: essentially infinite
Life expectancy: 50 million cycles
Enclosure material: aluminum
Linear Conductive-Plastic Potentiometer,
Model CLWG
|
|
Plug-On
Display with One Relay GP:50 Model LD1001 |
 Plug-On
Display with One Relay GP:50 Model LD1001
The LD1001 plug-on display is a universal local display with an
adjustable set point, suitable for use with any GP:50 4-20 mA, 2
wire transmitter. Removing the front cover of the display will reveal
2 programming buttons. These are used to input the desired settings
for the following parameters: Zero, scale, decimal point position,
damping and switching point. The LD1001 is factory set up when ordered
with a transmitter for easy field installation.
Features:
3 1/2 digits with one relay
Available as part of GP:50's Quick Ship program
Input:
4-20 mA
Supply:
4-20 mA transmitter
Interface:
DIN 43650 interface (GP:50 connector option "CJ"
Plug-On Display with One Relay GP:50
Model LD1001
|
|
Lebow
TMS9000 Series Torque Measurement System |
 Lebow
TMS9000 Series Torque Measurement System
Lebow's TMS9000 Torque Measurement System represents an advanced generation
of rotary transformer sensors designed to operate completely in the
digital domain for accurate measurement and output versatility. The
TMS9000 series physically integrates rotor and telemetry into one
element, with all set-up and output controlled through computer software,
providing expansive testing capabilities.
Lebow TMS9000 Series Torque Measurement
System
|
|
SGCM-401
Strain Gauge Conditioner Module |
 SGCM-401
Strain Gauge Conditioner Module
The Intertechnology SGCM-401 is a DIN rail mountable signal conditioner
for use with full-bridge strain gauge based transducers. It can
be used to condition the signal from any transducer with an output
sensitivity between 0.2 to 15.0 mV/V. The SGCM-401 can be powered
from an 8 to 48 VDC source and requires approximately 200 mA of
current. The power supply inputs are internally isolated to eliminate
any grounding or common mode problems thus eliminating the need
to have a separate power supply for your signal conditioning.
The SGCM-401 provides a very precise excitation voltage to the transducer
at 2.5, 5.0 or 10.0 VDC up to 100 mA. Outputs from the SGCM-401
are selectable as 0 to 10, ±5, ±10, 0-20 mA or 4-20 mA and are filtered
at 1 kHz. Optional high frequency response up to 50 kHz is available.
The SGCM-401 also has an externally activated shunt calibration
circuit as well as provisions for bridge completion resistors.

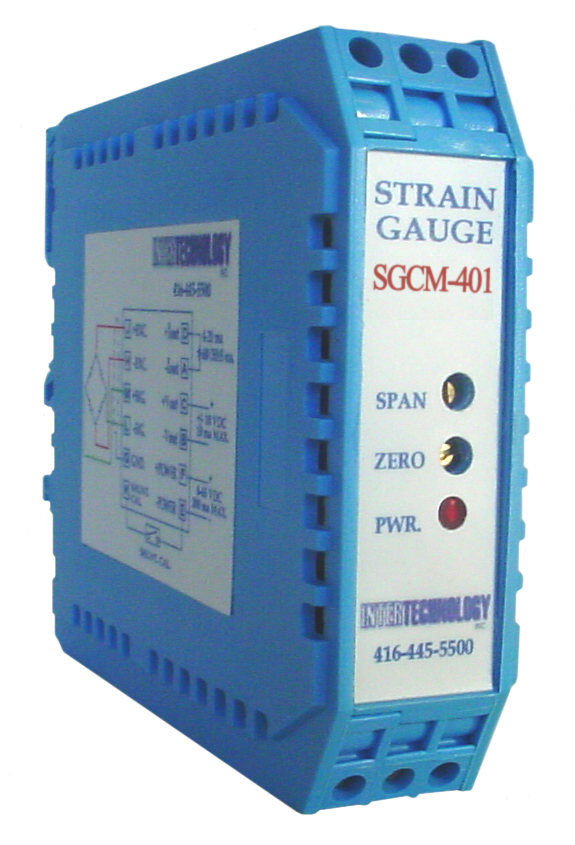

SGCM-401 Strain Gauge
Conditioner Module
|
